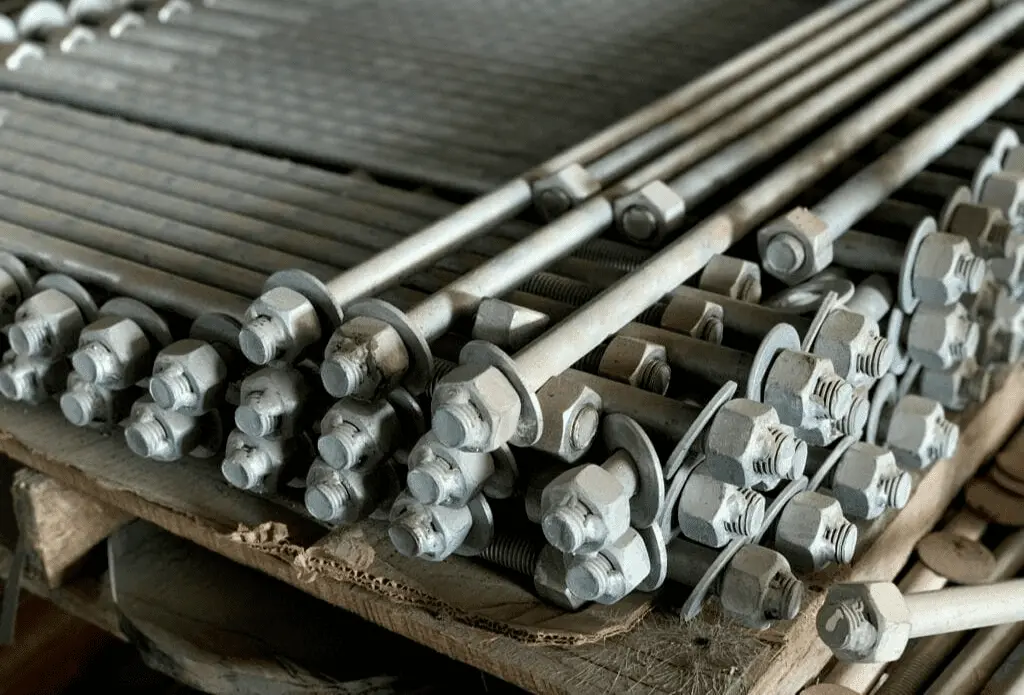

High tensile carbon steel for anchoring structural supports to concrete foundations

• Standards:
• ASTM F1554

• Coating Available:
• Hot Dipped Galvanised
• Clear Zinc

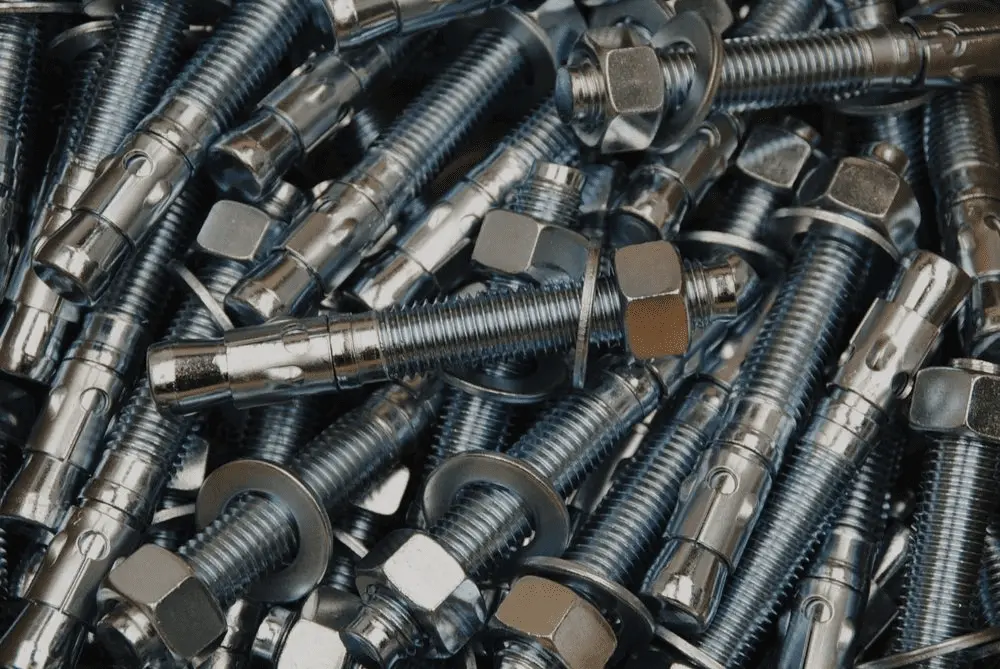

Expansion anchors are high tensile carbon steel or stainless steel fasteners for structural applications designed for usage in masonry base material which provides strong holding power on expansion. Based on the requirement and operation, we can classify expansion anchor into two categories, pre-expanded and un-expanded. The pre-expanded expansion anchor is inserted in a predrilled hole compress and then exerts force to create the holding power. The un-expanded expansion anchor requires the anchor to be set after it is installed into the predrilled hole in the masonry.

• Coating Available:
• Hot Dipped Galvanised
• Clear Zinc

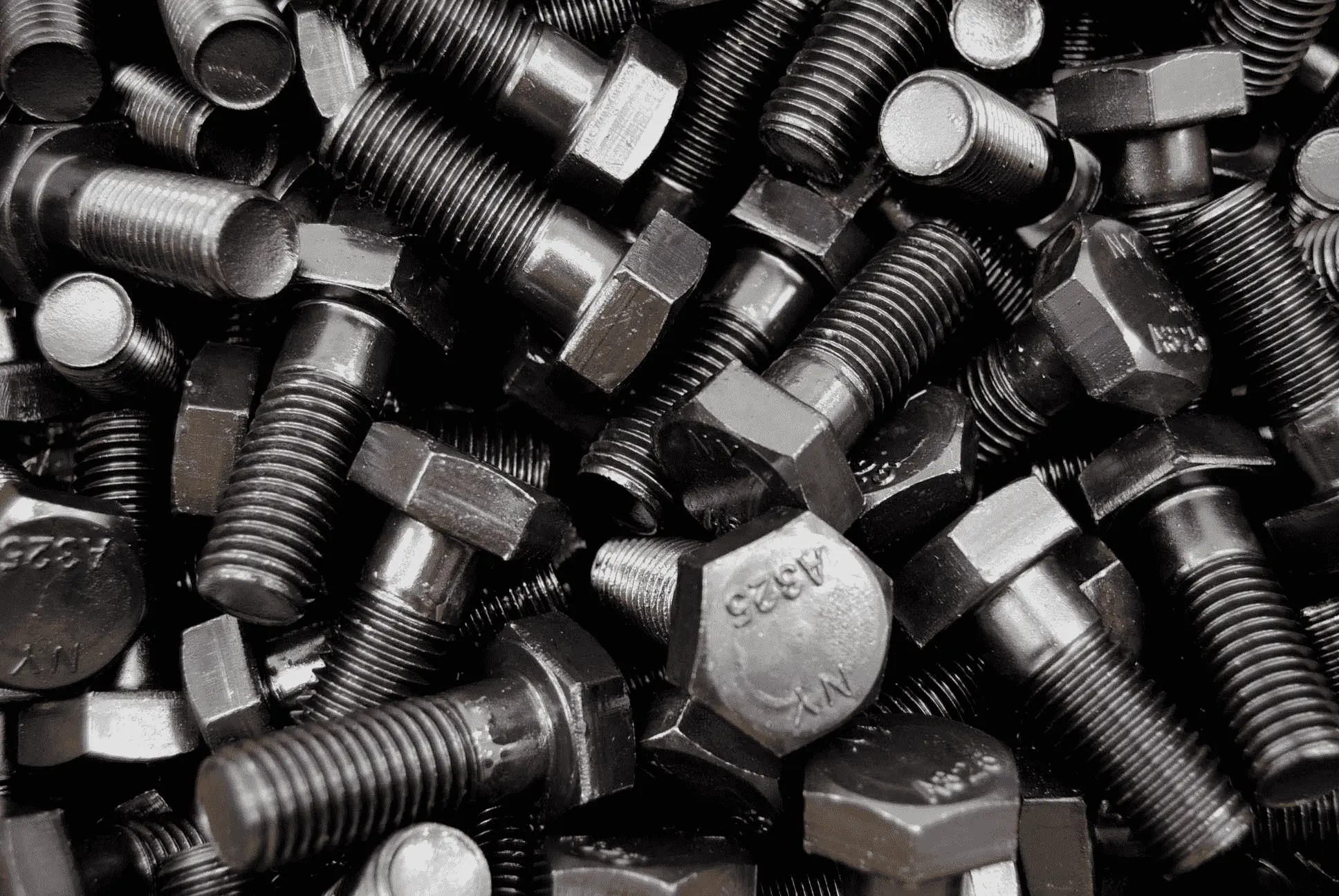

High tensile carbon steel or stainless steel fasteners for structural joints

• Standards:
• ASTM A307
• ASTM A325 / A490
• ASTM A325M / A490M
• SAE J429
• DIN EN ISO 4014
• DIN EN ISO 4017
• DIN 931
• DIN 933

• Coating Available:
• Hot Dipped Galvanised
• Clear Zinc
• Black Oxide

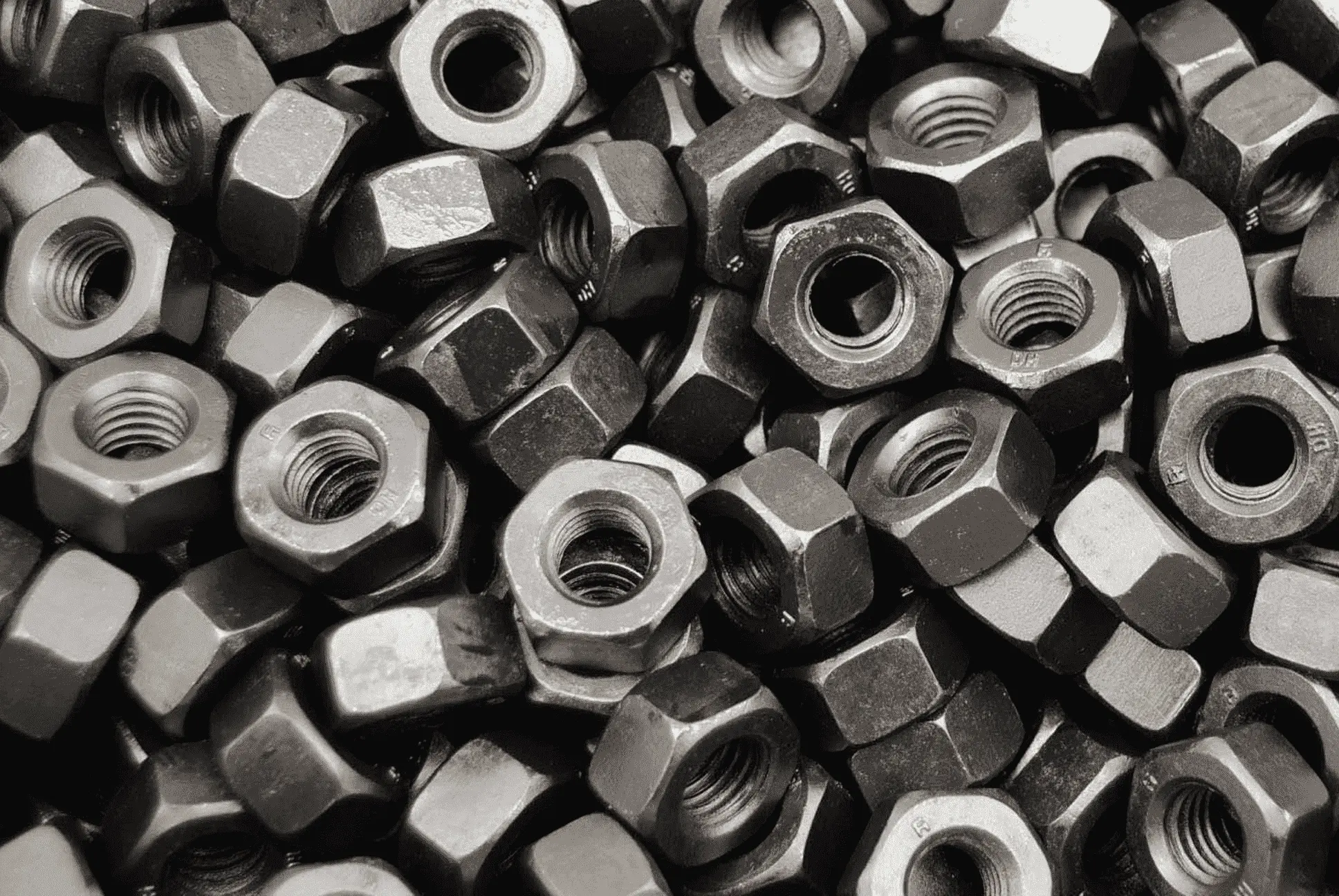

High tensile carbon steel or stainless steel nuts for bolt tightening applications.

• Standards:
• ASTM 194 / 194M
• ASTM A563 / A563M
• DIN EN ISO 4032/4033
• DIN 934

• Coating Available:
• Hot Dipped Galvanised
• Clear Zinc
• Black Oxide

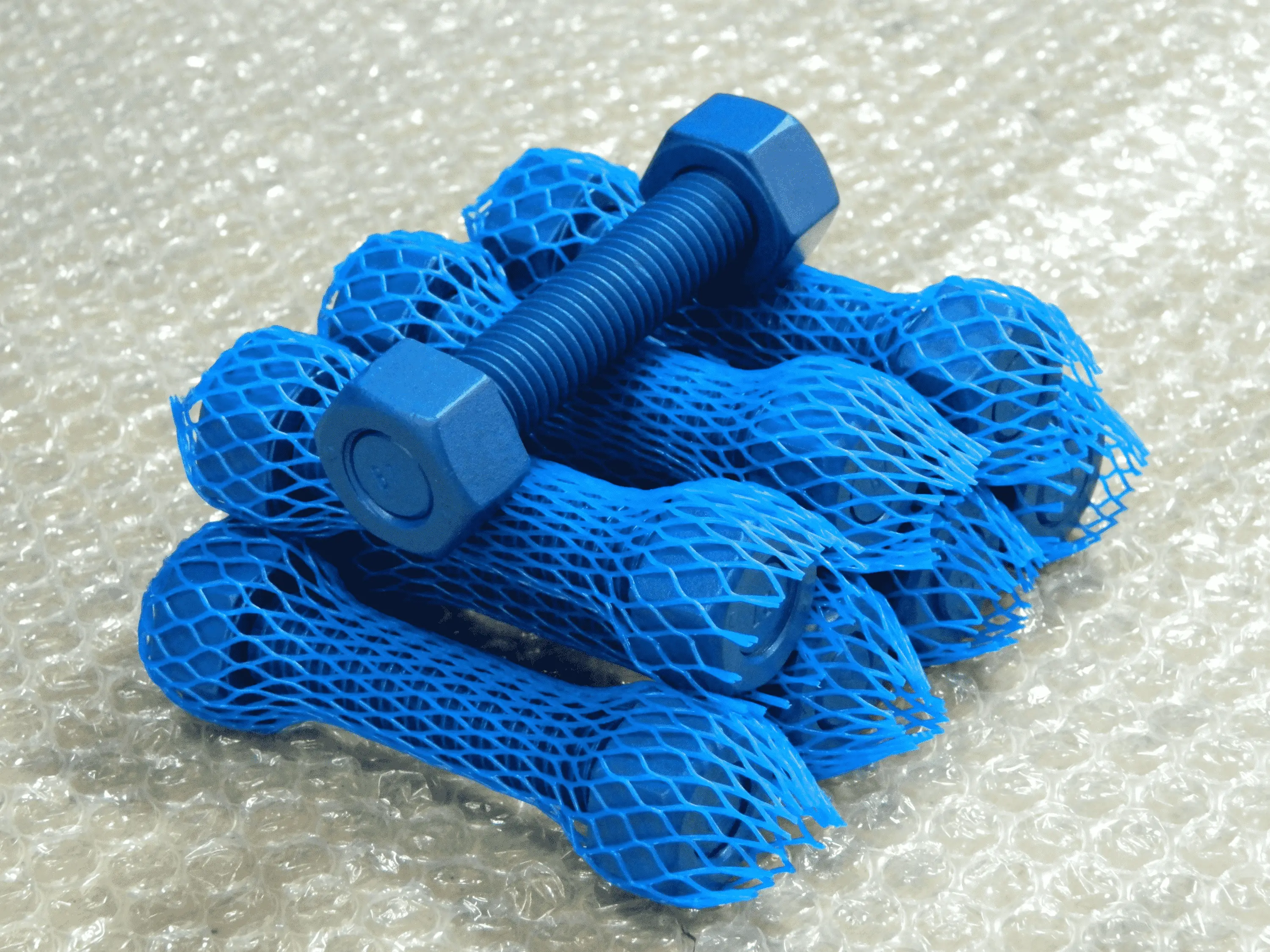

Stud Bolts are custom cut threaded fasteners commonly used with two nuts on either side, substituting a usual “bolt & nut” assembly. Carbon steel or stainless steel stud bolts are prominently used with pipes and flanges in the oil & gas industries.

• Standards:
• ASTM A193 / A193M
• ASTM A320 / A320M

• Coating Available:
• Fluorocarbon
• Hot Dipped Galvanised

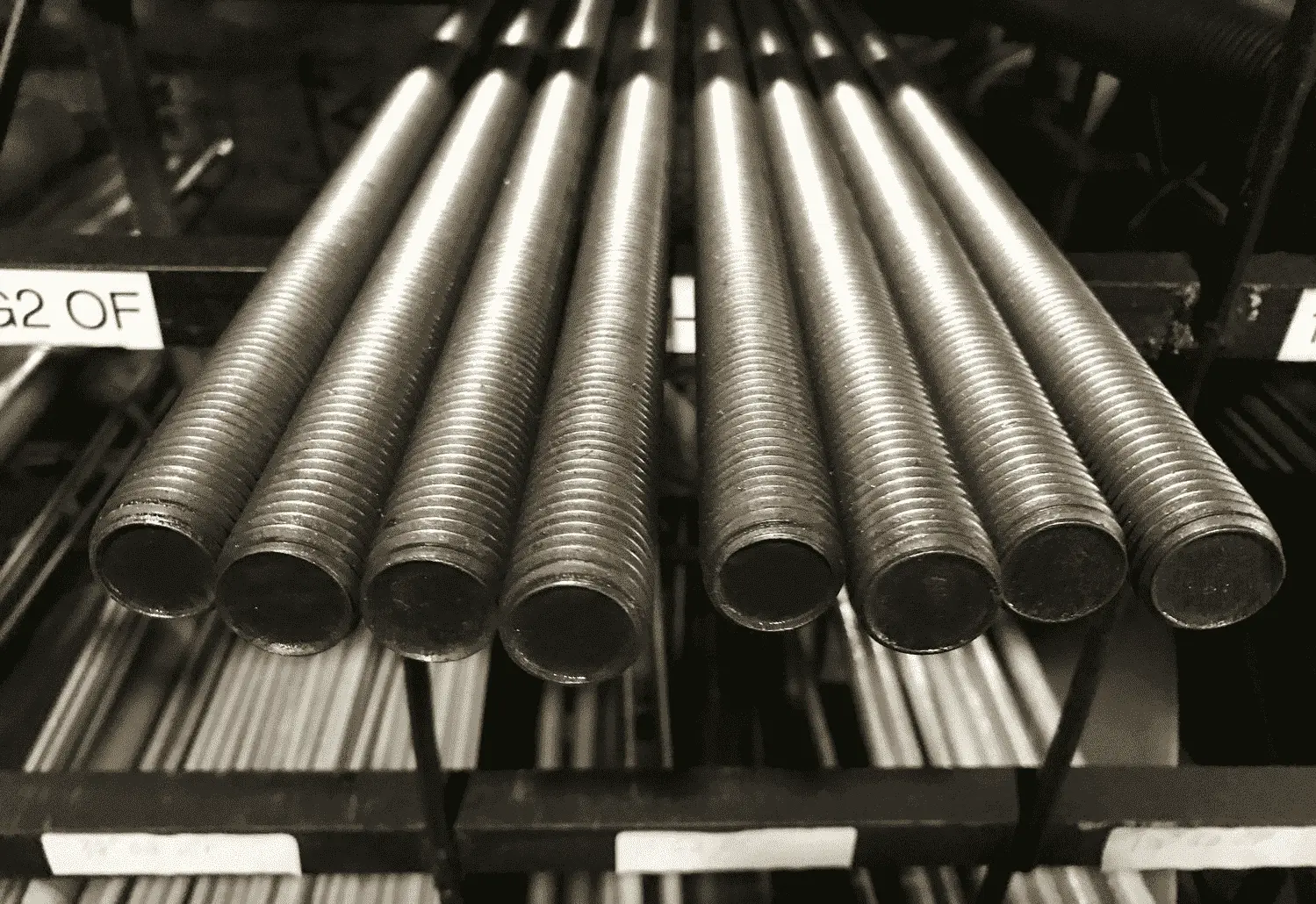

High tensile carbon steel or stainless steel threaded rods for structural applications.

• Standards:
• ASTM A307
• DIN 975

• Coating Available:
• Fluorocarbon
• Hot Dipped Galvanised

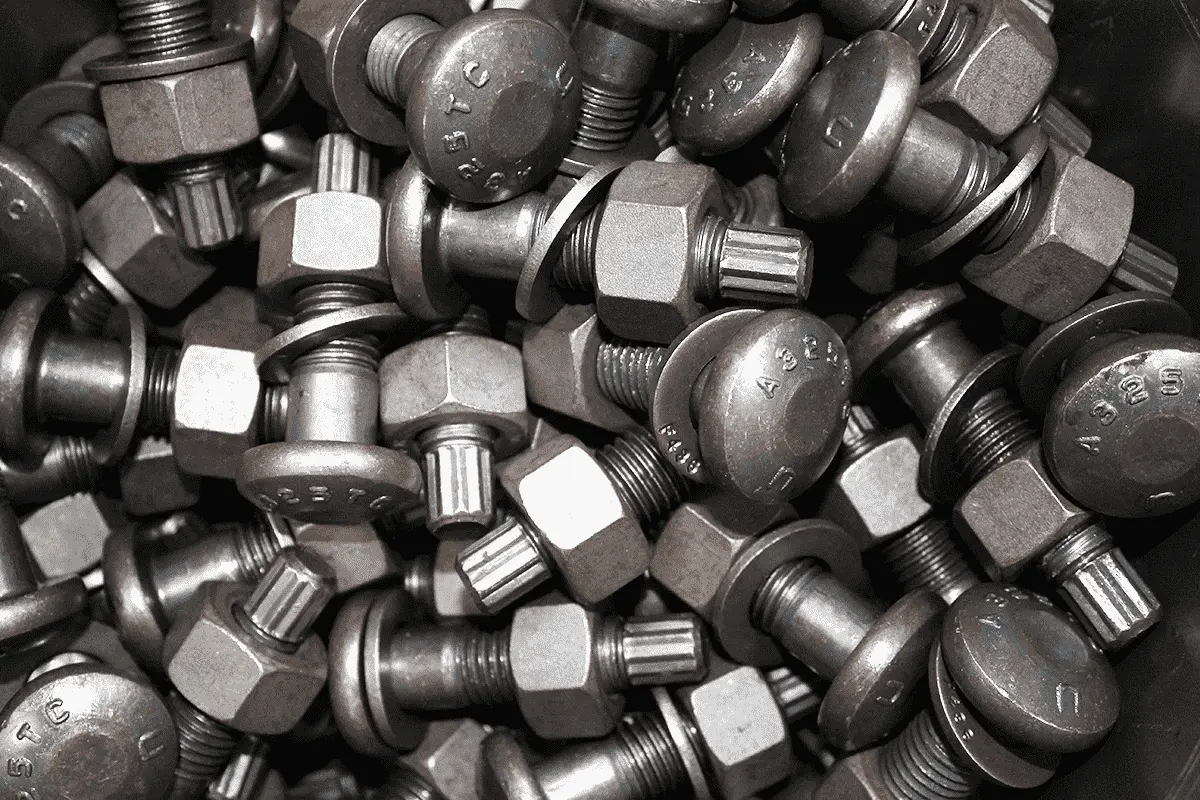

Torshear bolts or TCBs are high tensile carbon steel preloaded fasteners for structural joints and are replacing conventional high strength friction grip bolts and swaged collar rivets simply because they are quick and easy to install using lightweight electric shear wrenches.

High strength TCBs are used in a wide range of applications from bridge splice plates to beam-to-column connections, from stadia roof trusses to rail switches and crossings.

The combination of superior tensile strength together with phenomenal ductility result in a universal bolt that can be employed in almost all steelwork connections.

• Standards:
• JSS II 09
• JIS B1186

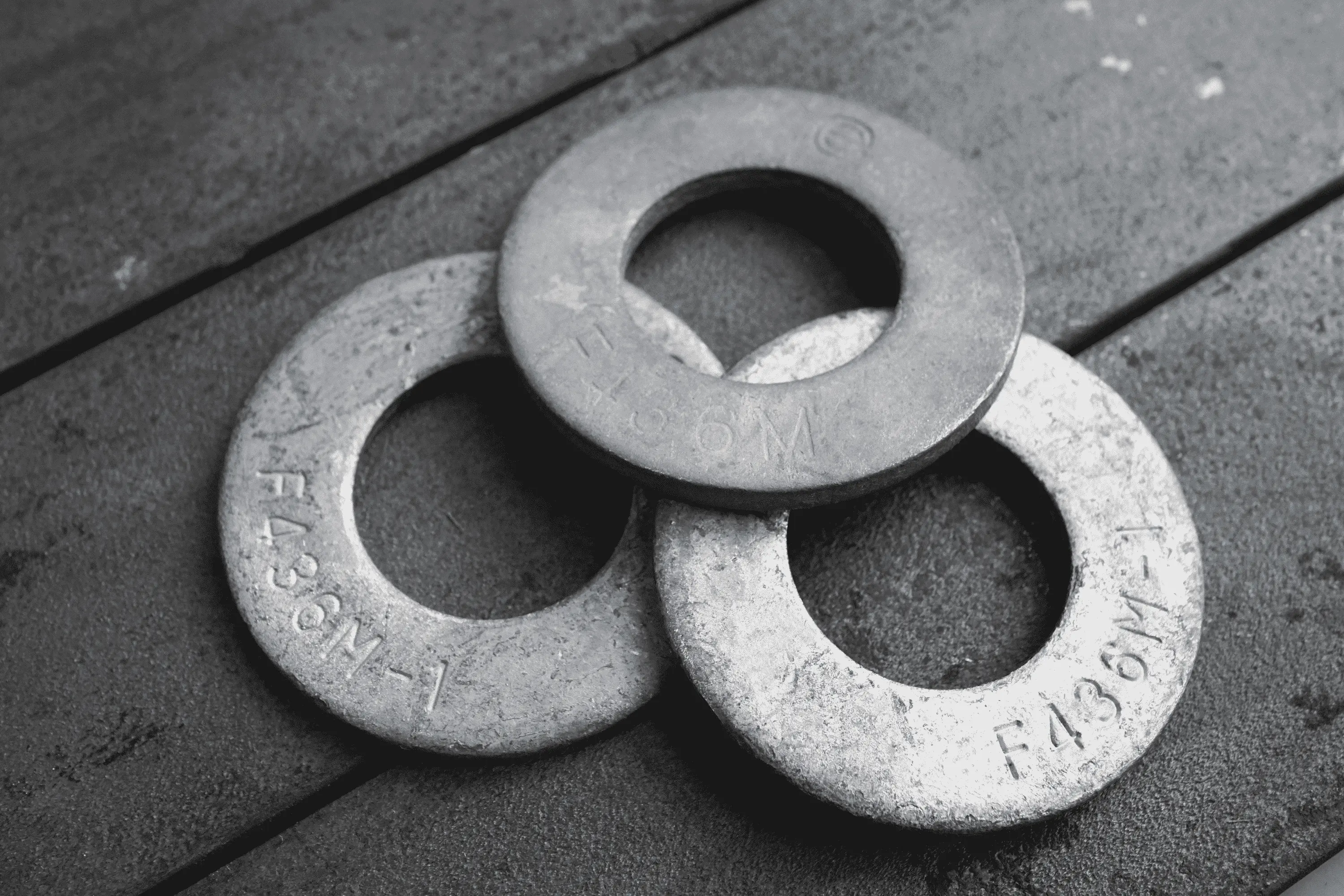

Hardened or non-hardened carbon steel or stainless steel circular washers for surface bearing applications.

• Standards:
• ASTM F436 / F346M,
• ASTM F844,
• DIN EN ISO 7089 / 7090
• DIN EN ISO 7091
• DIN 125
• DIN 127
• DIN 128
• DIN 6796

• Coating Available:
• Clear Zinc
• Hot Dipped Galvanised
• Black Oxide

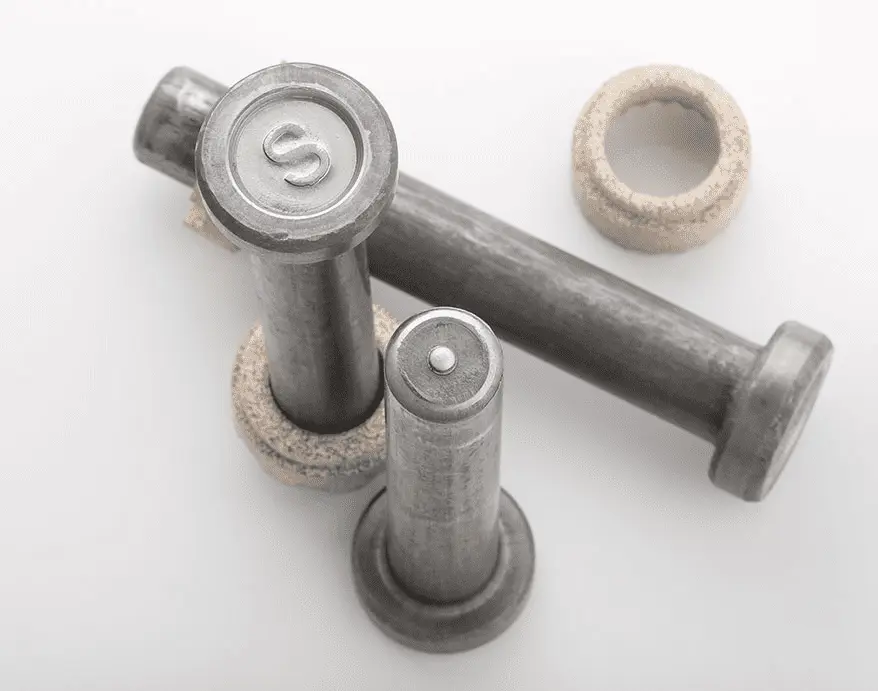

A shear connector is a steel projection provided on the top flange of steel composite bridge girders to provide necessary shear transfer between the steel girder and compositeslab to enable composite action.The most widely used form of shear connector is the headed stud, or shear stud. Other forms of shear connector are block and hoop, and channel connectors.

• The advantages of shear studs over other forms of connectors are that the:
• - Installation and welding process are quick and simple.
• - Provides little obstruction to the slab reinforcement.
• - Allows more satisfactory compaction of the concrete around the connectors.
• - It provides equal shear strength in all directions.
